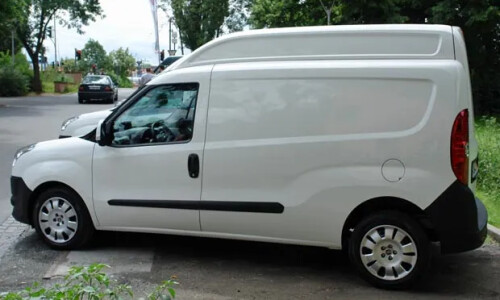

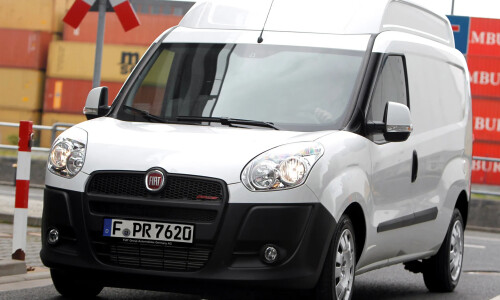

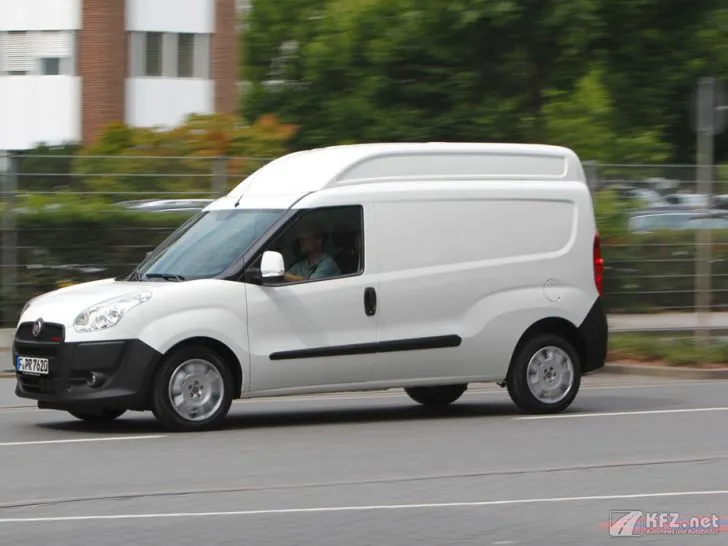

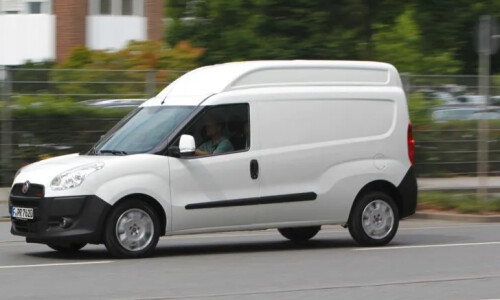

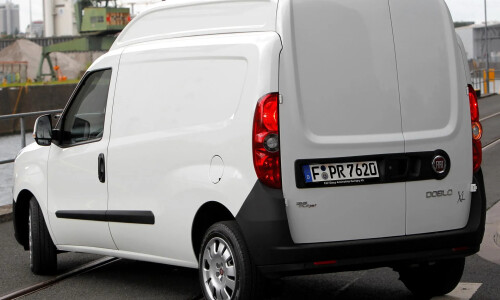

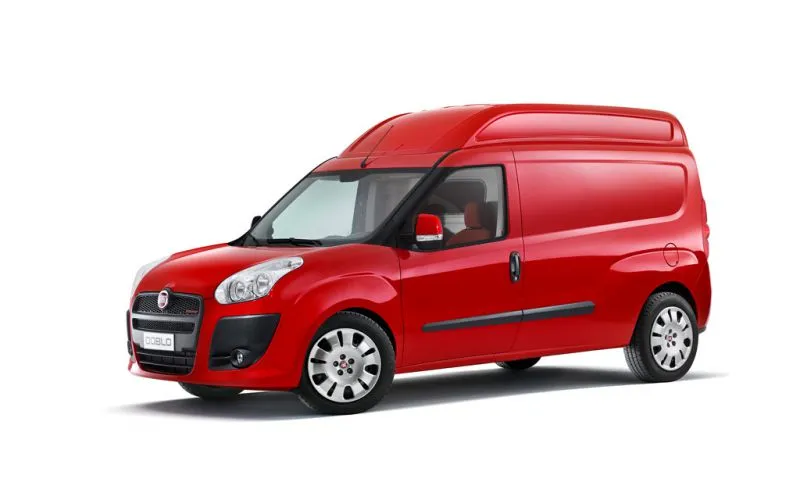

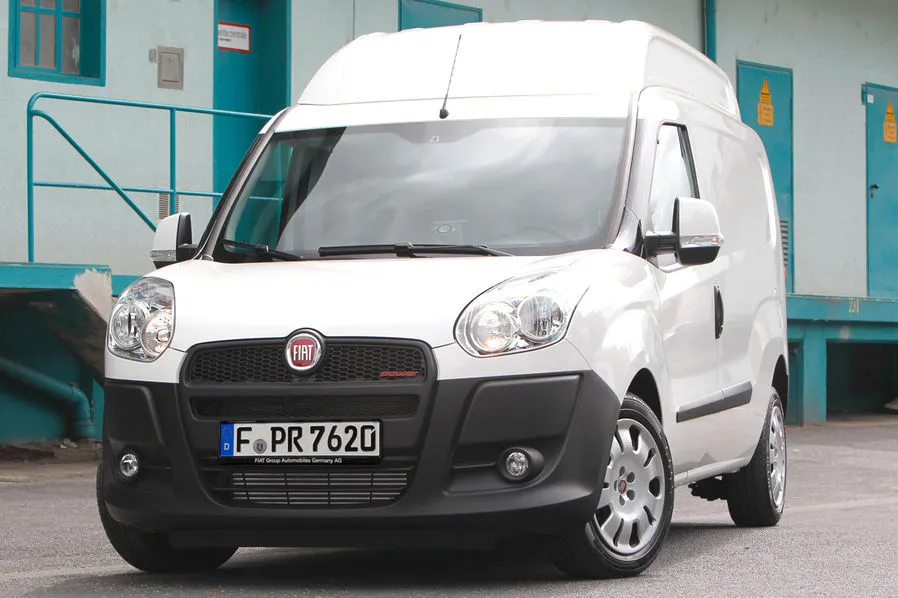

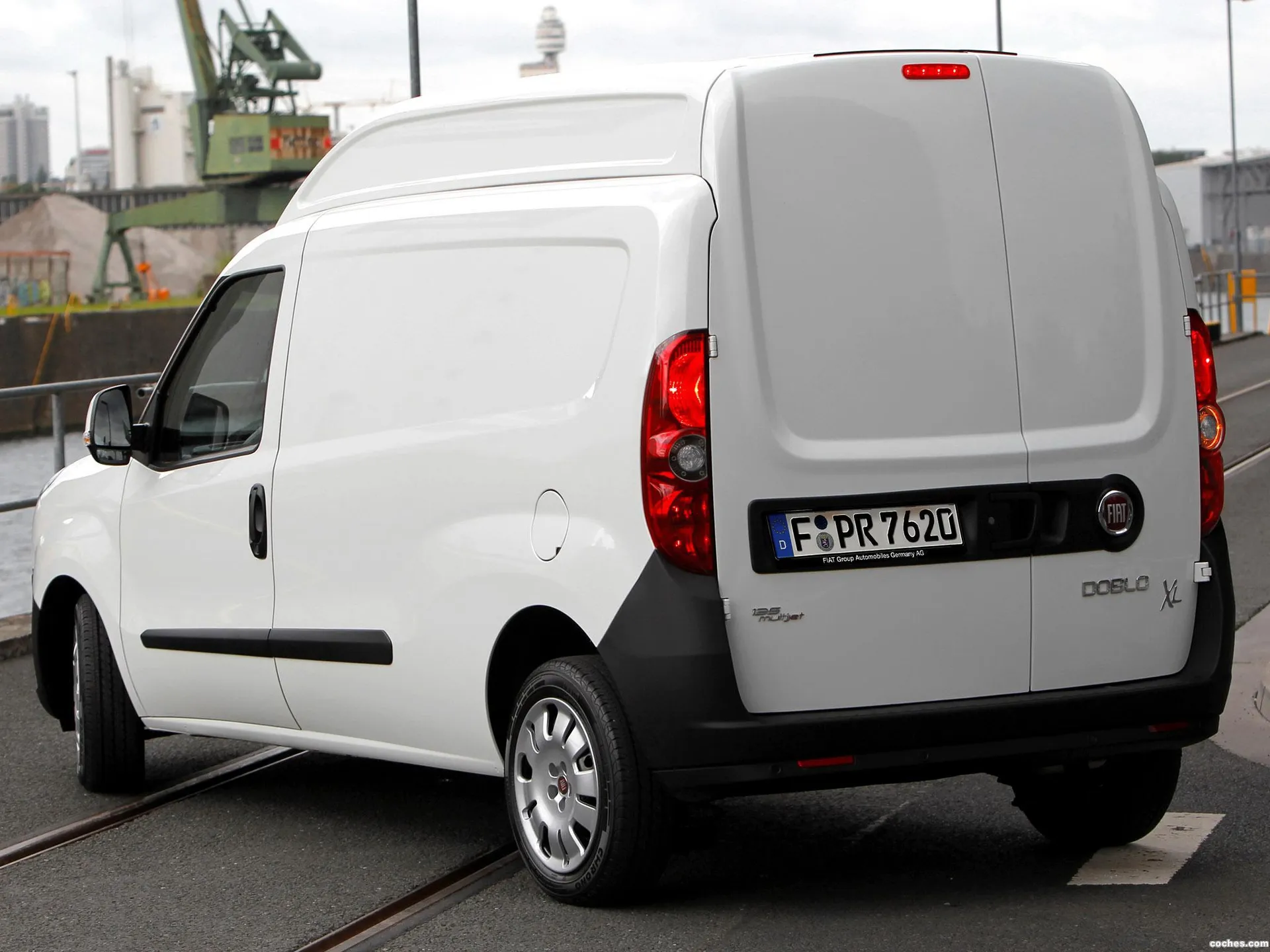

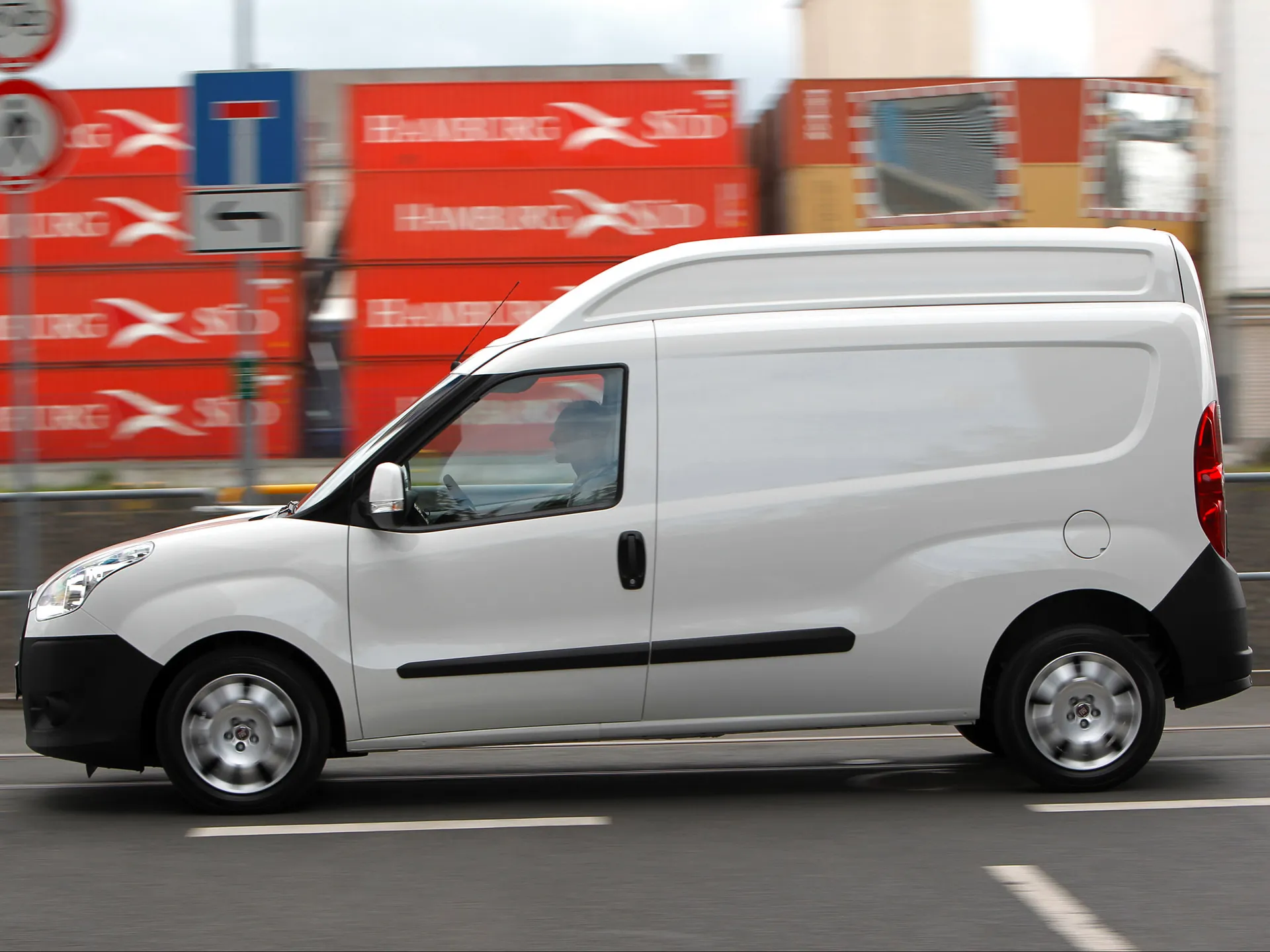

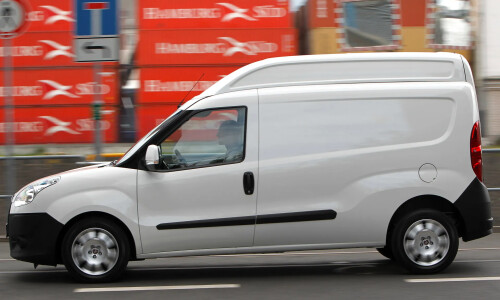

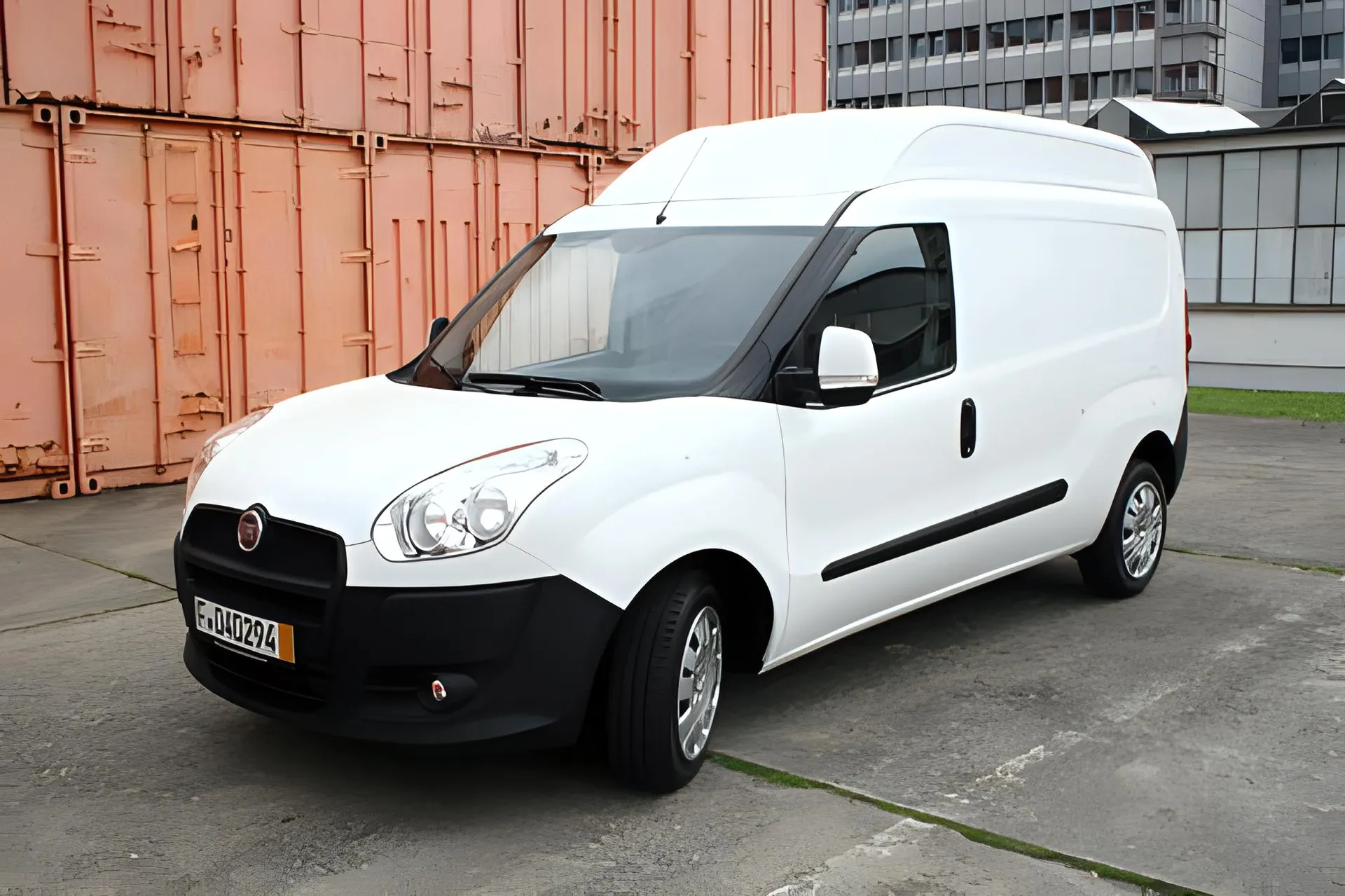

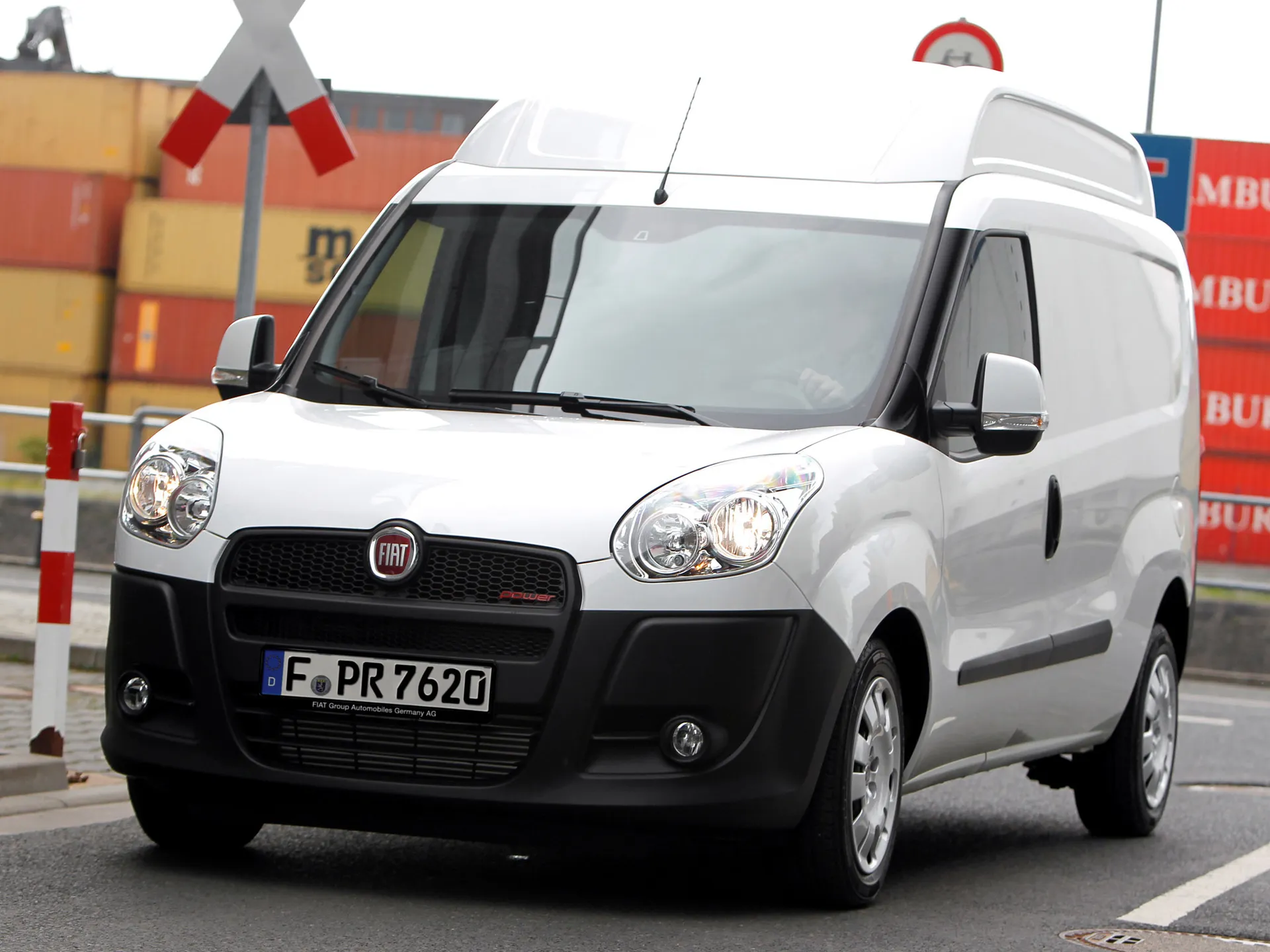

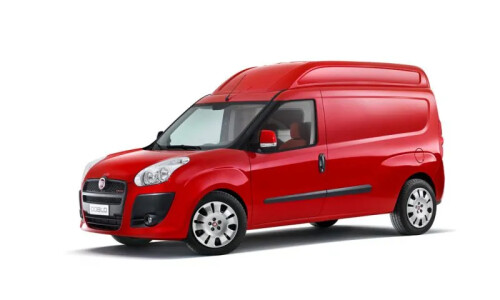

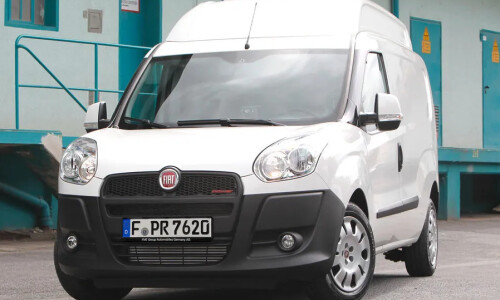

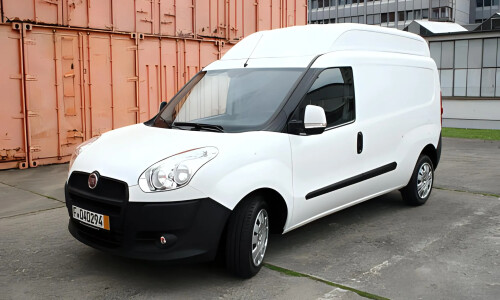

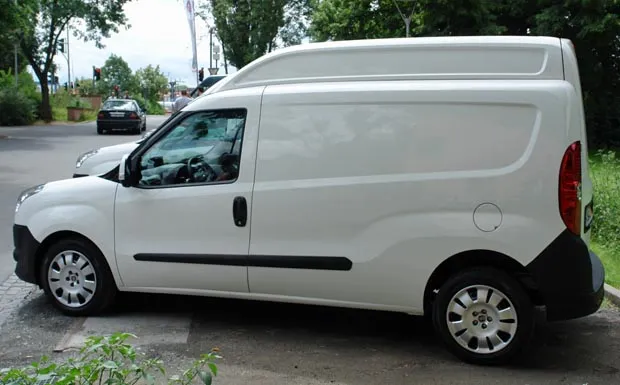

At the IAA Commercial Vehicles 2012, the Italian carmaker Fiat Doblo Cargo advanced with the Maxi XL offering its vehicles to a voluminous vans. Thus, the Fiat Doblo Cargo Maxi XL is the van in its segment with the greatest interior height. With dimensions of 1.55 meters height loading the new Fiat Doblo Cargo Maxi XL can also accommodate very bulky goods in its hold, so extended the offer for professionals in transportation. Thus, the volume of the van climbed to 5.0 cm ² and maximum payload of 1000 kg. For the transport sector particularly efficient motors are working in the Fiat Doblo Cargo Maxi XL in action: In addition to a turbo petrol engine with 1.4 liter displacement and an output 120 hp is a 1.6-liter Multijet diesel engine for selection for the Fiat Doblo Cargo Maxi XL cars which produces about 90 times or 105 hp power levels. The van can score with a compact security Package: Factory electronic brake force distribution (EBD), and front-side airbags and airbag is fitted. The cab is by various elements into a kind of mobile office. In addition to numerous shelves in the Fiat Doblo Cargo Maxi XL is a document holder on the dashboard and is accessible from the loading compartment over the cab as standard for the new van.
| Series | 2011 - 2012 |
|---|---|
| Types | Station Wagon |
| Engine capacity | 1368 cm³ |
| Performance | 95 HP (70 kW) |
| Top speed | 161 km/h |
| Acceleration (0-100 km/h) | 15,4 sec |
| Gearbox | 5-speed manual |
| Drive | front |
| Number of doors | 5 |
| Number of seats | 5 |
| Body type | Station Wagon |
| CO2 emissions | 172 g/km |
| Environmental zone | 4 |
| Emission Class | Euro 5 |
| Fuel | Gasoline |
| Consumption according to the manufacturer | 10 l/100km (city) 5,9 l/100km (highway) 7,4 l/100km (total) |
| Actual consumption | -- |
| Length | 4,39 m |
| Width | 1,83 m |
| Height | 1,84 m |
| Boot volume | 133 l |
| Empty weight | 1415 kg |
| Payload | 525 kg |
| Price | 583 |
| Insurance class | 15 HF / 16 TK / 16 VK |
| Series | 2009 - 2011 |
|---|---|
| Types | Station Wagon |
| Engine capacity | 1368 cm³ |
| Performance | 95 HP (70 kW) |
| Top speed | 161 km/h |
| Acceleration (0-100 km/h) | 15,4 sec |
| Gearbox | 5-speed manual |
| Drive | front |
| Number of doors | 5 |
| Number of seats | 7 |
| Body type | Station Wagon |
| CO2 emissions | 166 g/km |
| Environmental zone | 4 |
| Emission Class | Euro 5 |
| Fuel | Gasoline |
| Consumption according to the manufacturer | 9,3 l/100km (city) 5,9 l/100km (highway) 7,2 l/100km (total) |
| Actual consumption | -- |
| Length | 4,39 m |
| Width | 1,83 m |
| Height | 1,84 m |
| Boot volume | 133 l |
| Empty weight | 1445 kg |
| Payload | 600 kg |
| Price | 589 |
| Insurance class | 15 HF / 16 TK / 16 VK |
| Series | 2009 - 2012 |
|---|---|
| Types | Station Wagon |
| Engine capacity | 1368 cm³ |
| Performance | 95 HP (70 kW) |
| Top speed | 161 km/h |
| Acceleration (0-100 km/h) | 15,4 sec |
| Gearbox | 5-speed manual |
| Drive | front |
| Number of doors | 5 |
| Number of seats | 5 |
| Body type | Station Wagon |
| CO2 emissions | 166 g/km |
| Environmental zone | 4 |
| Emission Class | Euro 5 |
| Fuel | Gasoline |
| Consumption according to the manufacturer | 9,3 l/100km (city) 5,9 l/100km (highway) 7,2 l/100km (total) |
| Actual consumption | -- |
| Length | 4,39 m |
| Width | 1,83 m |
| Height | 1,84 m |
| Boot volume | 790 l |
| Empty weight | 1415 kg |
| Payload | 525 kg |
| Price | 581 |
| Insurance class | 15 HF / 16 TK / 16 VK |
| Series | 2010 - 2012 |
|---|---|
| Types | Station Wagon |
| Engine capacity | 1368 cm³ |
| Performance | 120 HP (88 kW) |
| Top speed | 172 km/h |
| Acceleration (0-100 km/h) | 12,3 sec |
| Gearbox | 6-speed manual |
| Drive | front |
| Number of doors | 5 |
| Number of seats | 5 |
| Body type | Station Wagon |
| CO2 emissions | 173 g/km |
| Environmental zone | 4 |
| Emission Class | Euro 5 |
| Fuel | Gas |
| Consumption according to the manufacturer | 9,7 l/100km (city) 6,1 l/100km (highway) 7,4 l/100km (total) |
| Actual consumption | -- |
| Length | 4,39 m |
| Width | 1,83 m |
| Height | 1,84 m |
| Boot volume | 133 l |
| Empty weight | 1615 kg |
| Payload | 525 kg |
| Price | 604 |
| Insurance class | 18 HF / 16 TK / 16 VK |
| Series | 2010 - 2012 |
|---|---|
| Types | Station Wagon |
| Engine capacity | 1368 cm³ |
| Performance | 120 HP (88 kW) |
| Top speed | 172 km/h |
| Acceleration (0-100 km/h) | 12,3 sec |
| Gearbox | 6-speed manual |
| Drive | front |
| Number of doors | 5 |
| Number of seats | 5 |
| Body type | Station Wagon |
| CO2 emissions | 134 g/km |
| Environmental zone | 4 |
| Emission Class | Euro 5 |
| Fuel | Gas |
| Consumption according to the manufacturer | 9,7 l/100km (city) 6,1 l/100km (highway) 7,4 l/100km (total) |
| Actual consumption | -- |
| Length | 4,39 m |
| Width | 1,83 m |
| Height | 1,84 m |
| Boot volume | 133 l |
| Empty weight | 1615 kg |
| Payload | 525 kg |
| Price | 515 |
| Insurance class | 18 HF / 16 TK / 16 VK |
| Series | 2011 - 2012 |
|---|---|
| Types | Station Wagon |
| Engine capacity | 1598 cm³ |
| Performance | 90 HP (66 kW) |
| Top speed | 158 km/h |
| Acceleration (0-100 km/h) | 14,9 sec |
| Gearbox | 6-speed manual |
| Drive | front |
| Number of doors | 5 |
| Number of seats | 5 |
| Body type | Station Wagon |
| CO2 emissions | 145 g/km |
| Environmental zone | 4 |
| Emission Class | Euro 5 |
| Fuel | Diesel |
| Consumption according to the manufacturer | 6,8 l/100km (city) 4,7 l/100km (highway) 5,5 l/100km (total) |
| Actual consumption | -- |
| Length | 4,39 m |
| Width | 1,83 m |
| Height | 1,84 m |
| Boot volume | 133 l |
| Empty weight | 1485 kg |
| Payload | 525 kg |
| Price | 577 |
| Insurance class | 20 HF / 18 TK / 16 VK |
| Series | 2011 - 2012 |
|---|---|
| Types | Station Wagon |
| Engine capacity | 1598 cm³ |
| Performance | 90 HP (66 kW) |
| Top speed | 158 km/h |
| Acceleration (0-100 km/h) | 14,9 sec |
| Gearbox | 6-speed manual |
| Drive | front |
| Number of doors | 5 |
| Number of seats | 5 |
| Body type | Station Wagon |
| CO2 emissions | 145 g/km |
| Environmental zone | 4 |
| Emission Class | Euro 5 |
| Fuel | Diesel |
| Consumption according to the manufacturer | 6,8 l/100km (city) 4,7 l/100km (highway) 5,5 l/100km (total) |
| Actual consumption | -- |
| Length | 4,39 m |
| Width | 1,83 m |
| Height | 1,84 m |
| Boot volume | 790 l |
| Empty weight | 1485 kg |
| Payload | 525 kg |
| Price | 569 |
| Insurance class | 20 HF / 18 TK / 16 VK |
| Series | 2010 - 2012 |
|---|---|
| Types | Station Wagon |
| Engine capacity | 1598 cm³ |
| Performance | 90 HP (66 kW) |
| Top speed | 158 km/h |
| Acceleration (0-100 km/h) | 14,9 sec |
| Gearbox | 6-speed manual |
| Drive | front |
| Number of doors | 5 |
| Number of seats | 5 |
| Body type | Station Wagon |
| CO2 emissions | 138 g/km |
| Environmental zone | 4 |
| Emission Class | Euro 5 |
| Fuel | Diesel |
| Consumption according to the manufacturer | 6,1 l/100km (city) 4,7 l/100km (highway) 5,2 l/100km (total) |
| Actual consumption | -- |
| Length | 4,39 m |
| Width | 1,83 m |
| Height | 1,84 m |
| Boot volume | 790 l |
| Empty weight | 1485 kg |
| Payload | 525 kg |
| Price | 574 |
| Insurance class | 20 HF / 18 TK / 16 VK |
| Series | 2010 - 2012 |
|---|---|
| Types | Station Wagon |
| Engine capacity | 1598 cm³ |
| Performance | 90 HP (66 kW) |
| Top speed | 158 km/h |
| Acceleration (0-100 km/h) | 14,9 sec |
| Gearbox | 6-speed manual |
| Drive | front |
| Number of doors | 5 |
| Number of seats | 5 |
| Body type | Station Wagon |
| CO2 emissions | 138 g/km |
| Environmental zone | 4 |
| Emission Class | Euro 5 |
| Fuel | Diesel |
| Consumption according to the manufacturer | 6,1 l/100km (city) 4,7 l/100km (highway) 5,2 l/100km (total) |
| Actual consumption | -- |
| Length | 4,39 m |
| Width | 1,83 m |
| Height | 1,84 m |
| Boot volume | 790 l |
| Empty weight | 1485 kg |
| Payload | 525 kg |
| Price | 566 |
| Insurance class | 20 HF / 18 TK / 16 VK |
| Series | 2010 - 2012 |
|---|---|
| Types | Station Wagon |
| Engine capacity | 1598 cm³ |
| Performance | 90 HP (66 kW) |
| Top speed | 158 km/h |
| Acceleration (0-100 km/h) | 14,9 sec |
| Gearbox | 5-speed automatic |
| Drive | front |
| Number of doors | 5 |
| Number of seats | 5 |
| Body type | Station Wagon |
| CO2 emissions | 133 g/km |
| Environmental zone | 4 |
| Emission Class | Euro 5 |
| Fuel | Diesel |
| Consumption according to the manufacturer | 5,6 l/100km (city) 4,7 l/100km (highway) 5 l/100km (total) |
| Actual consumption | -- |
| Length | 4,39 m |
| Width | 1,83 m |
| Height | 1,84 m |
| Boot volume | 790 l |
| Empty weight | 1485 kg |
| Payload | 525 kg |
| Price | 573 |
| Insurance class | 20 HF / 18 TK / 16 VK |
| Series | 2011 - 2012 |
|---|---|
| Types | Station Wagon |
| Engine capacity | 1956 cm³ |
| Performance | 135 HP (99 kW) |
| Top speed | 179 km/h |
| Acceleration (0-100 km/h) | 11,3 sec |
| Gearbox | 6-speed manual |
| Drive | front |
| Number of doors | 5 |
| Number of seats | 5 |
| Body type | Station Wagon |
| CO2 emissions | 156 g/km |
| Environmental zone | 4 |
| Emission Class | Euro 5 |
| Fuel | Diesel |
| Consumption according to the manufacturer | 7,3 l/100km (city) 5,1 l/100km (highway) 5,9 l/100km (total) |
| Actual consumption | -- |
| Length | 4,39 m |
| Width | 1,83 m |
| Height | 1,84 m |
| Boot volume | 133 l |
| Empty weight | 1525 kg |
| Payload | 525 kg |
| Price | 618 |
| Insurance class | 20 HF / 20 TK / 18 VK |
| Series | 2009 - 2012 |
|---|---|
| Types | Station Wagon |
| Engine capacity | 1956 cm³ |
| Performance | 135 HP (99 kW) |
| Top speed | 179 km/h |
| Acceleration (0-100 km/h) | 11,3 sec |
| Gearbox | 6-speed manual |
| Drive | front |
| Number of doors | 5 |
| Number of seats | 5 |
| Body type | Station Wagon |
| CO2 emissions | 150 g/km |
| Environmental zone | 4 |
| Emission Class | Euro 5 |
| Fuel | Diesel |
| Consumption according to the manufacturer | 6,7 l/100km (city) 5,1 l/100km (highway) 5,7 l/100km (total) |
| Actual consumption | -- |
| Length | 4,39 m |
| Width | 1,83 m |
| Height | 1,84 m |
| Boot volume | 790 l |
| Empty weight | 1525 kg |
| Payload | 525 kg |
| Price | 616 |
| Insurance class | 20 HF / 20 TK / 18 VK |
| Series | 2010 - 2011 |
|---|---|
| Types | Station Wagon |
| Engine capacity | 1248 cm³ |
| Performance | 90 HP (66 kW) |
| Top speed | 158 km/h |
| Acceleration (0-100 km/h) | 14,9 sec |
| Gearbox | 5-speed manual |
| Drive | front |
| Number of doors | 5 |
| Number of seats | 5 |
| Body type | |
| CO2 emissions | 129 g/km |
| Environmental zone | 4 |
| Emission Class | Euro 5 |
| Fuel | Diesel |
| Consumption according to the manufacturer | 6 l/100km (city) 4,3 l/100km (highway) 4,9 l/100km (total) |
| Actual consumption | -- |
| Length | 4,74 m |
| Width | 1,83 m |
| Height | 1,88 m |
| Boot volume | 0 l |
| Empty weight | 1430 kg |
| Payload | 800 kg |
| Price | 534 |
| Insurance class | 19V HF / 17V TK / 16V VK |
| Series | 2011 - 2011 |
|---|---|
| Types | Station Wagon |
| Engine capacity | 1598 cm³ |
| Performance | 90 HP (66 kW) |
| Top speed | 158 km/h |
| Acceleration (0-100 km/h) | 14,9 sec |
| Gearbox | 5-speed automatic |
| Drive | front |
| Number of doors | 5 |
| Number of seats | 5 |
| Body type | Station Wagon |
| CO2 emissions | 141 g/km |
| Environmental zone | 4 |
| Emission Class | Euro 5 |
| Fuel | Diesel |
| Consumption according to the manufacturer | 6,4 l/100km (city) 4,8 l/100km (highway) 5,4 l/100km (total) |
| Actual consumption | -- |
| Length | 4,39 m |
| Width | 1,83 m |
| Height | 1,84 m |
| Boot volume | 133 l |
| Empty weight | 1485 kg |
| Payload | 525 kg |
| Price | 586 |
| Insurance class | 19 HF / 17 TK / 16 VK |
| Series | 2010 - 2011 |
|---|---|
| Types | Station Wagon |
| Engine capacity | 1598 cm³ |
| Performance | 90 HP (66 kW) |
| Top speed | 158 km/h |
| Acceleration (0-100 km/h) | 0,0 sec |
| Gearbox | 5-speed automatic |
| Drive | front |
| Number of doors | 5 |
| Number of seats | 5 |
| Body type | |
| CO2 emissions | 133 g/km |
| Environmental zone | 4 |
| Emission Class | Euro 5 |
| Fuel | Diesel |
| Consumption according to the manufacturer | 5,6 l/100km (city) 4,7 l/100km (highway) 5 l/100km (total) |
| Actual consumption | -- |
| Length | 4,39 m |
| Width | 1,83 m |
| Height | 2,12 m |
| Boot volume | 0 l |
| Empty weight | 1485 kg |
| Payload | 525 kg |
| Price | 559 |
| Insurance class | 19 HF / 17 TK / 16 VK |
| Series | 2010 - 2011 |
|---|---|
| Types | Station Wagon |
| Engine capacity | 1956 cm³ |
| Performance | 135 HP (99 kW) |
| Top speed | 179 km/h |
| Acceleration (0-100 km/h) | 11,3 sec |
| Gearbox | 6-speed manual |
| Drive | front |
| Number of doors | 5 |
| Number of seats | 5 |
| Body type | |
| CO2 emissions | 150 g/km |
| Environmental zone | 4 |
| Emission Class | Euro 5 |
| Fuel | Diesel |
| Consumption according to the manufacturer | 6,7 l/100km (city) 5,1 l/100km (highway) 5,7 l/100km (total) |
| Actual consumption | -- |
| Length | 4,39 m |
| Width | 1,83 m |
| Height | 2,12 m |
| Boot volume | 0 l |
| Empty weight | 1440 kg |
| Payload | 750 kg |
| Price | 625 |
| Insurance class | 17 HF / 17 TK / 17 VK |
